DeSmet Industries

Fixed-top ESD cable step cover

Protect cable runs along wall perimeters and between laboratory equipment. P/N 103-100 combines a fixed diamond-tread walking surface, a steel frame, and conductive leveling feet for ESD-controlled workspaces.

Specifications & datasheetProduct questionsApplicationsRequest a quote
Cable Step Cover, Fixed Top, with blue steel frame and diamond-tread aluminum top

P/N 103-100

Cable Step CoverFixed Top

ESD-safe step-over for cable bundles in active labs

A rigid, walk-over cover that protects cable bundles and helps reduce trip hazards in ESD-sensitive areas. A diamond-tread aluminum top sits on a powder-coated steel frame with conductive leveling feet that tie into conductive flooring to help control static.

Request a quoteDatasheet · PDF

Features

  • ESD-aware designIntegrates with conductive flooring to help maintain a controlled resistance-to-ground path.
  • Anti-slip treadDiamond-plate top for confident footing.
  • Safety-aware edgesBeveled perimeter reduces hazard points.
  • Leveling stabilityConductive technopolymer leveling feet stabilize the unit on uneven floors; field-replaceable.
  • High load capacity500 lb maximum recommended load, with safety factor.

Technical data

Part number103-100
Dimensions36 × 24 × 9.5 in (914 × 610 × 241 mm)
Weight34 lb (15.4 kg)
Top surface1/8 in aluminum diamond-tread plate
FramePowder-coated steel tubing (blue)
Frame-to-foot resistance< 2 Ω
Leveling feetConductive; surface resistivity 10³ Ω, volume resistivity 10³ Ω·cm (ASTM D991)
Max load500 lb recommended, with safety factor

Options · engineered to order

  • Alternate top materials
  • Custom frame colors
  • Non-ESD footing or alternative foot types
  • Serialization and inspection report

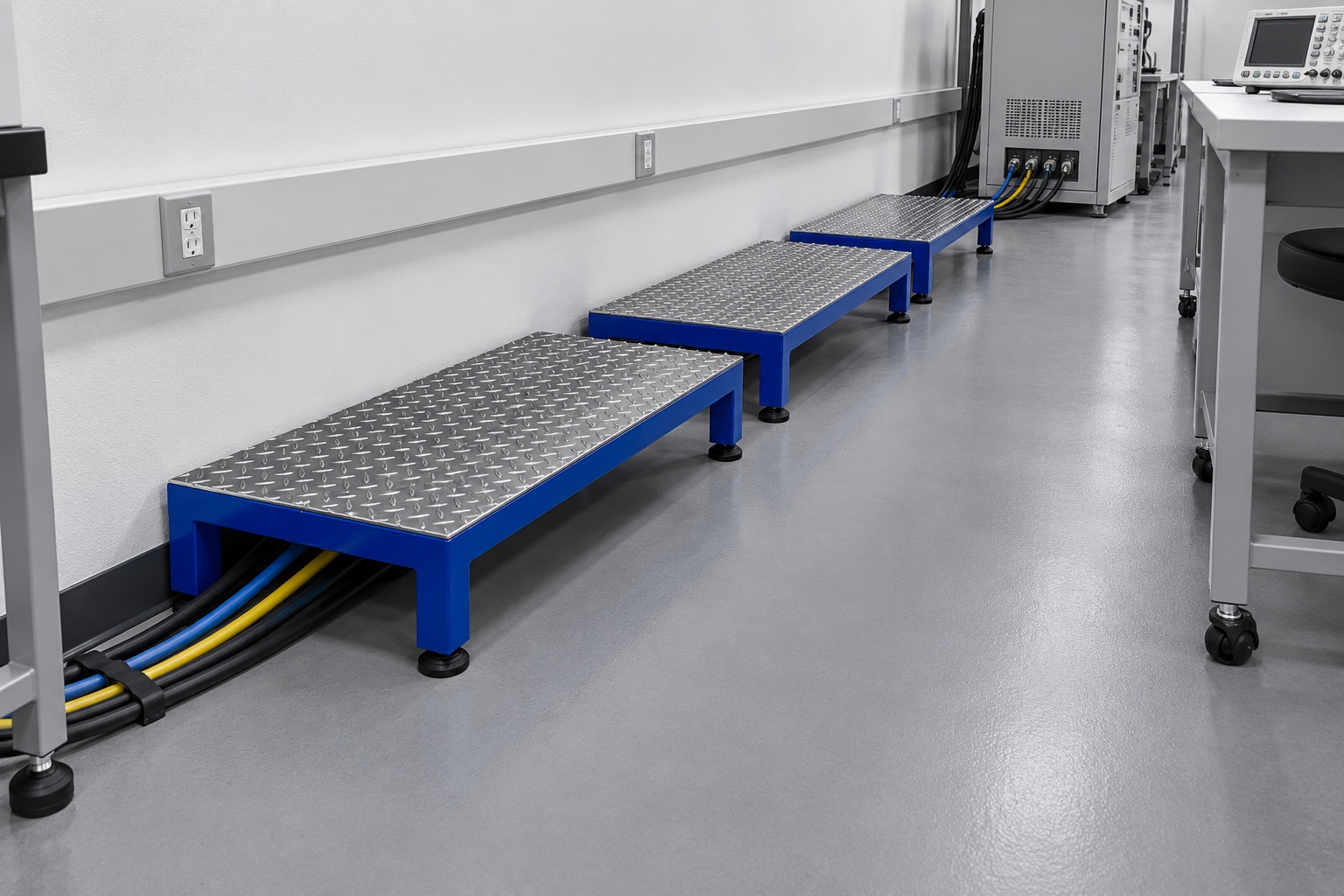

Three DeSmet 103-100 fixed-top Cable Step Covers lined up along a wall-perimeter cable run in a test laboratory.
Fixed-top covers along a wall-perimeter cable run.

Product questions & answers

What is an ESD cable step cover?

A cable step cover provides a raised walking surface over cable bundles. The DeSmet 103-100 helps protect cables and reduce trip hazards along wall perimeters and between workstations, test cabinets, and sensitive hardware. Conductive leveling feet integrate with your facility’s ESD-control system.

How large is the 103-100 fixed-top cable cover?

The standard unit measures 36 × 24 × 9.5 inches (914 × 610 × 241 mm) overall and weighs 34 lb (15.4 kg). Include your cable-bundle dimensions and required clearance in your quote request so we can confirm the fit.

What is the recommended load for the fixed-top cable step cover?

The maximum recommended load is 500 lb, with safety factor. Share your loading requirements with DeSmet when selecting a standard or custom configuration.

Does this cable cover need conductive flooring and grounding?

No. The cover is designed with special ESD leveling feet for use in ESD protected areas (EPAs), and non-ESD footing can also be supplied. For EPA applications, follow your facility’s flooring and grounding requirements.

Should I choose a fixed-top or hinged cable step cover?

Choose the fixed-top 103-100 for a fixed walking surface above your cable run. Choose the opening-top 101-100 when you need to route, inspect, or change cables without moving the cover. Maximum recommended loads are 500 lb for 103-100 and 312 lb for 101-100.

Can I order a custom-size laboratory cable cover?

Yes. DeSmet can tailor dimensions, finishes, and hardware to your application. Options include alternate top materials, frame colors, foot types, serialization, and inspection reports. Send your footprint, cable clearance, loading, and ESD requirements for a custom quote.

What comes with the standard fixed-top cable cover?

The standard configuration includes an assembled blue powder-coated steel frame, a 1/8-inch aluminum diamond-tread top, and conductive leveling feet.

Where is the fixed-top cover used?

The 103-100 is designed for indoor laboratory and fabrication environments. Typical layouts include wall-side cable runs and connections between test equipment, computer workstations, and hardware under test. Contact DeSmet about requirements for other environments.

Fixed top or opening top?

Compare ESD cable step covers by access, size, and recommended load. Both use conductive leveling feet and a diamond-tread aluminum top for controlled indoor workspaces.

Standard Cable Step Cover configurations
Selection detailFixed Top
P/N 103-100		Opening Top
P/N 101-100
Cable accessFixed walking surfaceGas-strut-assisted hinged lid for access without moving the cover
Dimensions36 × 24 × 9.5 in (914 × 610 × 241 mm)36 × 24 × 9.5 in (914 × 610 × 241 mm)
Weight34 lb (15.4 kg)29 lb (13.2 kg)
Top surface1/8 in aluminum diamond-tread plate1/16 in aluminum diamond-tread plate
Max load500 lb recommended, with safety factor312 lb recommended, with safety factor
Frame-to-foot resistance< 2 Ω< 2 Ω
Explore this modelSpecifications & questionsSpecifications & questions

Send your cable-bundle size and required clearance with your quote request. Both models feature special ESD leveling feet for EPA applications; non-ESD footing can also be supplied.
